用途
G4-73与Y4-73型锅炉通、引风机适用于火力发电厂中670t/h以下蒸汽锅炉的通、引风机系统。通风机输送的介质为空气，最高温度不得超过80℃；引风机输送的介质为烟气，最高温度不得超过250℃。在引风机前，必须加装除尘装置，以尽可能减少进入风机中烟气的尘含量。
结构特点

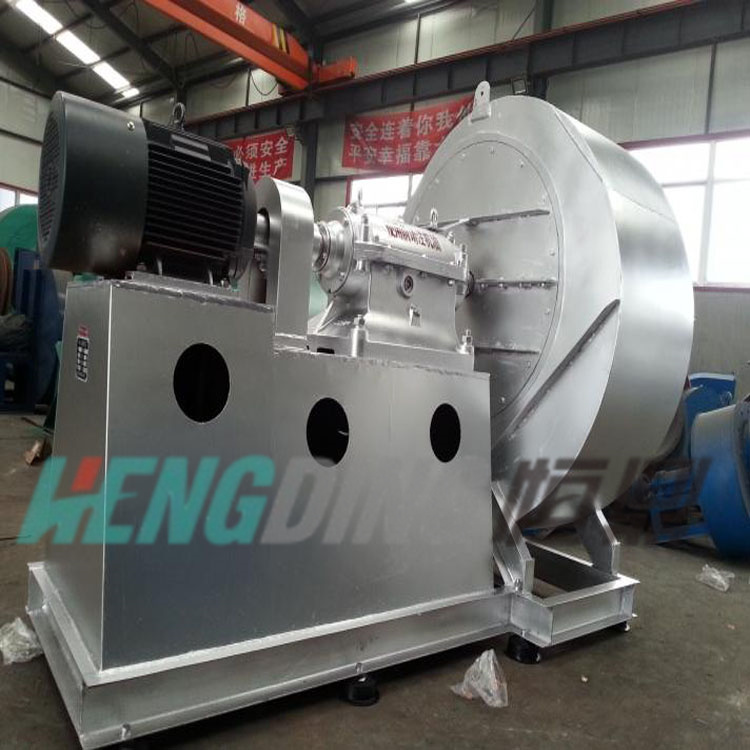

风机主要由叶轮、机壳、进风口、调节门及传动部分组成。
（1）叶轮由后倾机翼斜切的叶片焊接而成，由于采用了机翼形叶片，保证了风机高效率、低噪声、高强度。叶轮经静、动平衡校正，故运转平稳。
（2）机壳是用普通钢板焊接而成的蜗形体。
（3）收敛、流线形的进风口制成整体结构，用螺栓固定在风机入口侧。
（4）调节门是用来调节风机流量的装置，轴向安装在风机前面。
（5）传动部分的主轴由优质钢制成，本风机均采用滚动轴承。轴承箱由整体的筒式轴承箱和枕式轴承箱。
性能与选择
G4-73离心通风机性能表 | ||||||||
机号 | 转速 R/min | 流量 M³/h | 全压 Pa | 内效率（％） | 内功率 /KW | 所需功率/KW | 电动机 | |
型号 | 功率kw | |||||||
8D | 1450 | 16156 | 2104 | 79.4 | 11.80 | 13.85 | Y180M-4 | 18.5 |
18244 | 2095 | 83.2 | 12.67 | 14.86 | ||||
20442 | 2072 | 85.7 | 13.63 | 15.99 | ||||
22530 | 2018 | 87 | 14.42 | 16.92 | ||||
24618 | 1924 | 86.8 | 15.06 | 17.67 | ||||
26706 | 1794 | 85.6 | 15.45 | 18.13 | ||||
28904 | 1611 | 82.8 | 15.53 | 18.22 | ||||
30993 | 1400 | 79.4 | 15.11 | 17.73 | ||||
10D | 1450 | 31554 | 3301 | 79.4 | 36.02 | 42.27 | Y250M-4 | 55 |
35633 | 3287 | 83.2 | 38.66 | 45.36 | ||||
39926 | 3251 | 85.7 | 41.58 | 48.79 | ||||
44004 | 3166 | 87 | 44.0 | 51.64 | ||||
48083 | 3018 | 86.8 | 45.95 | 53.92 | ||||
52161 | 2813 | 85.6 | 47.15 | 55.32 | ||||
56455 | 2525 | 82.8 | 47.39 | 55.61 | ||||
60533 | 2194 | 79.4 | 46.12 | 54.11 | ||||
12D | 1450 | 54526 | 4777 | 79.4 | 89.63 | 105.17 | Y315M1-4 | 132 |
61574 | 4756 | 83.2 | 96.19 | 112.87 | ||||
68992 | 4705 | 85.7 | 103.46 | 1231.40 | ||||
76040 | 4582 | 87 | 109.49 | 128.47 | ||||
83088 | 4366 | 86.8 | 114.33 | 134.15 | Y315M2-4 | 160 | ||
90135 | 4069 | 85.6 | 117.31 | 137.65 | ||||
97554 | 3650 | 82.8 | 117.92 | 138.36 | ||||
104600 | 3171 | 79.4 | 114.75 | 134.65 | ||||
14D | 1450 | 86586 | 6541 | 79.4 | 193.71 | 227.30 | Y355-4 | 280 |
97777 | 6513 | 83.2 | 207.90 | 243.96 | ||||
109550 | 6442 | 85.7 | 223.63 | 262.41 | ||||
120740 | 6272 | 87 | 236.66 | 277.7 | ||||
131940 | 5975 | 86.8 | 247.13 | 289.99 | Y355-4 | 315 | ||
143130 | 5566 | 85.6 | 253.56 | 297.53 | ||||
154910 | 4990 | 82.8 | 254.89 | 299.10 | ||||
166100 | 4333 | 79.4 | 248.02 | 291.04 | ||||
16D | 960 | 85571 | 3709 | 79.4 | 109.60 | 128.60 | Y355-6 | 185 |
96631 | 3693 | 83.2 | 117.63 | 138.03 | ||||
108270 | 3653 | 85.7 | 126.53 | 148.47 | ||||
119330 | 3558 | 87 | 133.91 | 159.12 | ||||
130390 | 3391 | 86.8 | 139.83 | 164.08 | ||||
141450 | 3161 | 85.6 | 143.46 | 168.33 | ||||
153090 | 2836 | 82.8 | 144.21 | 169.22 | ||||
164150 | 2465 | 79.4 | 140.33 | 164.66 | ||||
18D | 730 | 92648 | 2705 | 79.4 | 86.85 | 101.91 | Y315M-8 | 132 |
104620 | 2693 | 83.2 | 93.21 | 109.37 | ||||
117220 | 2664 | 85.7 | 100.26 | 117.64 | ||||
129200 | 2595 | 87 | 106.1 | 124.49 | ||||
141170 | 2474 | 86.8 | 110.79 | 130 | ||||
153150 | 2306 | 85.6 | 113.67 | 133.37 | ||||
165750 | 2070 | 82.8 | 114.27 | 134.09 | ||||
177730 | 1880 | 79.4 | 111.19 | 130.46 | ||||
20D | 730 | 127080 | 3347 | 79.4 | 147.07 | 172.58 | Y355-8 | 220 |
143510 | 3333 | 83.2 | 157.84 | 185.21 | ||||
160800 | 3297 | 85.7 | 169.79 | 199.23 | ||||
177230 | 3211 | 87 | 179.68 | 210.85 | ||||
193660 | 3060 | 86.8 | 187.63 | 220.16 | Y355-8 | 250 | ||
210080 | 2853 | 85.6 | 192.51 | 225.89 | ||||
227370 | 2560 | 82.8 | 193.52 | 227.07 | ||||
243800 | 2225 | 79.4 | 188.30 | 220.96 | ||||
Y4-73离心通风机性能表 | ||||||||
机号 | 转速 R/min | 流量 M³/h | 全压 Pa | 内效率（％） | 内功率 /KW | 所需功率/KW | 电动机 | |
型号 | 功率kw | |||||||
8D | 1450 | 16156 | 1303 | 79.4 | 7.33 | 9.73 | Y160M-4 | 11 |
18244 | 1298 | 83.2 | 7.87 | 10.44 | ||||
20442 | 1284 | 85.7 | 8.46 | 11.23 | Y160L-4 | 15 | ||
22530 | 1250 | 87 | 8.96 | 11.89 | ||||
24618 | 1192 | 86.8 | 9.35 | 12.41 | ||||
26706 | 1112 | 85.6 | 9.60 | 12.73 | ||||
28904 | 998 | 82.8 | 9.65 | 12.80 | ||||
30993 | 868 | 79.4 | 9.39 | 12.45 | ||||
9D | 1450 | 23003 | 1651 | 79.4 | 13.21 | 17.52 | Y180L-4 | 22 |
25976 | 1644 | 83.2 | 14.18 | 18.81 | ||||
29106 | 1627 | 85.7 | 15.25 | 20.23 | ||||
32079 | 1584 | 87 | 16.14 | 21.41 | ||||
35052 | 1531 | 86.8 | 16.85 | 22.36 | Y200L-4 | 30 | ||
39926 | 1509 | 85.6 | 17.29 | 22.94 | ||||
41155 | 1365 | 82.8 | 17.38 | 23.06 | ||||
44128 | 1200 | 79.4 | 16.91 | 22.44 | ||||
12D | 1450 | 54526 | 2949 | 79.4 | 55.67 | 73.85 | Y280M-4 | 90 |
61574 | 2936 | 83.2 | 59.75 | 79.26 | ||||
68992 | 2905 | 85.7 | 64.27 | 85.26 | ||||
76040 | 2829 | 87 | 68.01 | 90.23 | Y315S-4 | 110 | ||
83088 | 2697 | 86.8 | 71.02 | 94.21 | ||||
90135 | 2514 | 85.6 | 72.87 | 96.67 | ||||
97554 | 2256 | 82.8 | 73.25 | 97.17 | ||||
104600 | 1961 | 79.4 | 71.28 | 94.55 | ||||
14D | 1450 | 86586 | 4029 | 79.4 | 120.33 | 159.61 | Y315M-4 | 185 |
97777 | 4011 | 83.2 | 129.44 | 171.3 | ||||
109550 | 3968 | 85.7 | 138.91 | 184.26 | ||||
120740 | 3864 | 87 | 147.00 | 195.00 | Y315M-4 | 220 | ||
131940 | 3683 | 86.8 | 153.51 | 203.63 | ||||
143130 | 3433 | 85.6 | 157.5 | 208.92 | ||||
154910 | 3080 | 82.8 | 158.33 | 210.02 | ||||
166100 | 2676 | 79.4 | 154.06 | 204.36 | ||||
18D | 960 | 121830 | 2908 | 79.4 | 122.69 | 162.74 | Y355-6 | 200 |
137580 | 2895 | 83.2 | 131.67 | 174.65 | ||||
154160 | 2864 | 85.7 | 141.64 | 187.88 | ||||
169910 | 2790 | 87 | 149.89 | 198.82 | ||||
185650 | 2659 | 86.8 | 156.52 | 207.62 | Y355-6 | 220 | ||
201400 | 2479 | 85.6 | 160.59 | 213.01 | ||||
217980 | 2225 | 82.8 | 161.43 | 214.13 | ||||
233730 | 1934 | 79.4 | 157.08 | 208.36 | ||||
20D | 960 | 167130 | 3598 | 79.4 | 207.77 | 275.61 | JSQ1410-6 | 380 |
188730 | 3583 | 83.2 | 222.99 | 295.8 | ||||
211470 | 3545 | 85.7 | 239.87 | 318.18 | ||||
233070 | 3452 | 87 | 253.84 | 336.71 | ||||
254670 | 3290 | 86.8 | 265.07 | 351.61 | ||||
276270 | 3067 | 85.6 | 271.96 | 360.76 | ||||
299010 | 2752 | 82.8 | 273.39 | 362.64 | ||||
320610 | 2392 | 79.4 | 266.02 | 352.87 | ||||
