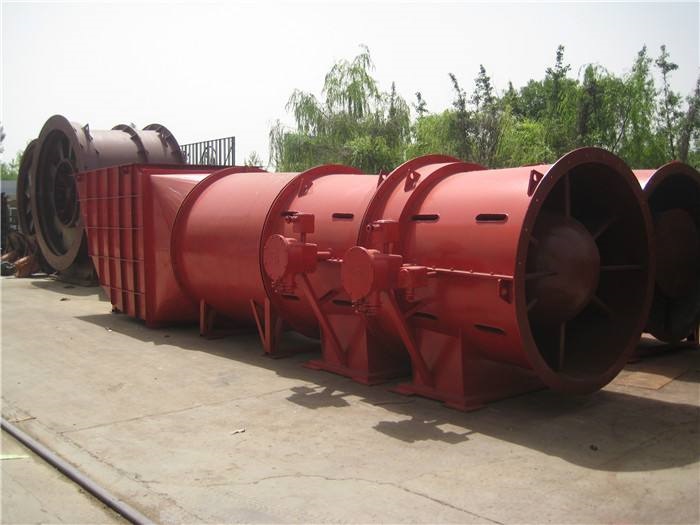

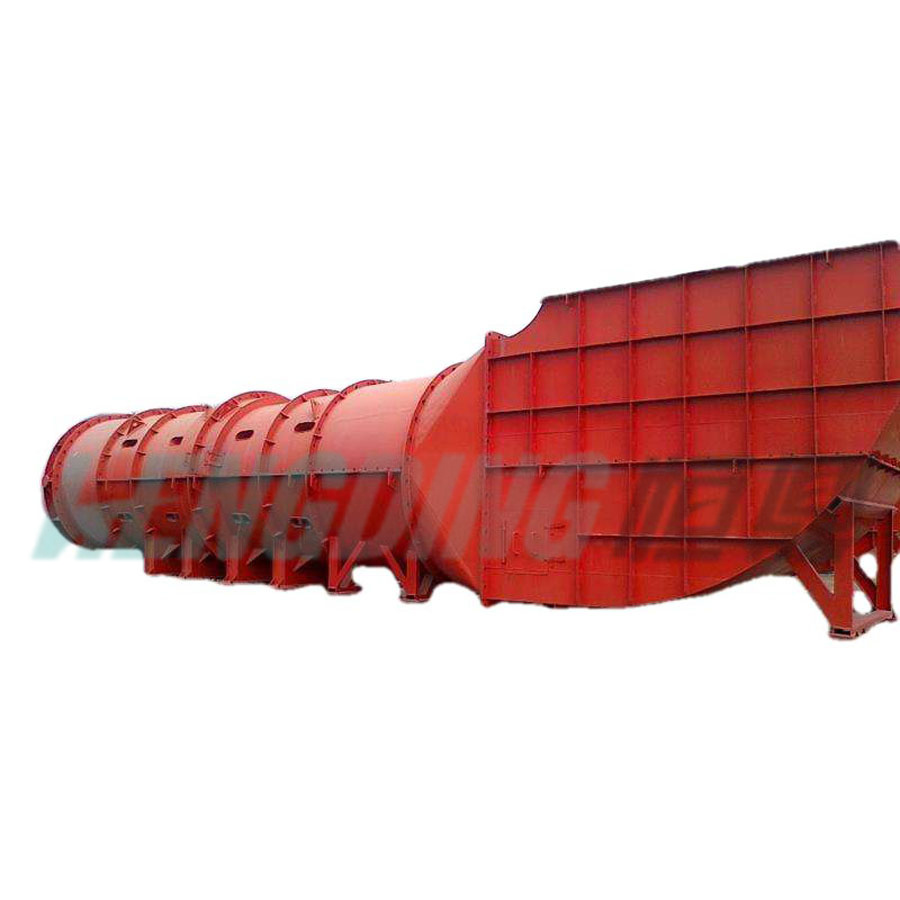

FBCDZ矿用对旋防爆风机

二维码
138-0643-4669
产品详情

FBCDZ(原BDK62)系列防爆轴流通风机性能范围及主要技术参数表




系列

Series


机号

No.


风量(m3/s)

Air volume (m3/s)

全压(Pa)

Full pressure(Pa)

电机型号

Motor model


功率(KW)

Power (KW)



FBCDZ(B)- 4(n=1450r/min)

12

9.6-29.0

860-3400

YBF250M-4

2×55

13

12.2-37.0

1010-4000

YBF280M-4

2×90

14

15.2-45.6

1170-4630

YBF315M-4

2×132




FBCDZ(A)-6

(n=980r/min)

14

10.1-31.7

918-2888

YBF280M-6

2×55

15

12.4-39.0

1054-3315

YBF315S-6

2×75

16

15.0-47.3

1199-3772

YBF315L1-6

2×110

17

18.0-56.8

1353-4258

YBF315L2-6

2×132

18

21.4-67.4

1517-4774

YBF355M2-6

2×185

19

25.1-79.3

1690-5319

YBF355L1-6

2×220

20

29.3-92.5

1873-5893

YBF355L2-6

2×250

21

33.9-107.0

2065-6497

YBF450M1-6

2×355







FBCDZ(A)-8

(n=740r/min)

17

13.6-42.9

772-2428

YBF315S-8

2×55

18

16.1-50.9

865-2722

YBF315M-8

2×75

19

19.0-60.0

964-3033

YBF315L2-8

2×110

20

22.1-69.8

1068-3360

YBF355M1-8

2×132

21

25.6-80.8

1177-3705

YBF355M2-8

2×160

22

29.5-92.9

1292-4066

YBF355L2-8

2×200

23

33.7-106.2

1412-4444

YBF450S3-8

2×250

24

38.2-120.7

1538-4839

YBF450M2-8

2×315

25

43.2-136.4

1669-5250

YBF450M2-8

2×315

26

48.6-153.4

1805-5679

YBF560M2-8

2×450

27

54.4-171.8

1946-6124

YBF560M2-8

2×450

28

60.7-191.6

2093-6586

YBF630M2-8

2×710






FBCDZ(A)-10

(n=590r/min)

20

17.6-55.7

679-2136

YBF315L-10

2×75

21

20.4-64.4

748-2355

YBF355M1-10

2×90

22

23.5-74.1

821-2585

YBF355M2-10

2×110

23

26.8-84.7

898-2825

YBF355L1-10

2×132

24

30.5-96.2

978-3076

YBF355L2-10

2×160

25

34.5-108.7

1061-3338

YBF355L3-10

2×185

26

38.8-122.3

1147-3610

YBF450M2-10

2×250

27

43.4-137.0

1237-3893

YBF450M2-10

2×250

28

48.4-152.8

1331-4187

JBO710M1-10

2×315

29

53.8-169.7

1427-4491

JBO710M2-10

2×355



系列

Series


机号

No.


风量(m3/s)

Air volume (m3/s)

全压(Pa)

Full pressure(Pa)

电机型号

Motor model


功率(KW)

Power (KW)



FBCDZ(A)-10

(n=590r/min)

30

59.5-187.9

1527-4806

JBO800S2-10

2×450

32

72.3-228.0

1738-5468

JBO900S1-10

2×560

34

86.7-273.4

1962-6173

JBO900S3-10

2×800

36

102.9-324.7

2199-6921

JBO900M2-10

2×1000







FBCDZ(A)-12

(n=490r/min)


24

25.3-79.9

674-2122

JBO355S2-12

2×110

25

28.6-90.3

732-2302

JBO355S2-12

2×110

26

32.2-101.6

791-2490

JBO400S-12

2×132

27

36.1-113.8

853-2685

JBO400M-12

2×160

28

40.2-126.9

918-2888

JBO710S1-12

2×200

29

44.7-140.9

985-3098

JBO710S1-12

2×200

30

49.5-156.0

1054-3315

JBO710M1-12

2×250

32

60.0-189.4

1199-3772

JBO800S2-12

2×355

34

72.0-227.1

1353-4258

JBO900S1-12

2×450

36

85.5-269.6

1517-4774

JBO900M1-12

2×560

38

100.5-317.1

1690-5319

JBO900L1-12

2×800

40

171.2-370.0

1873-5893

JBO900L2-12

2×1000




FBCDZ(B)-6

(n=980r/min)




15

14.5-36.6

805-2335

YBF280M-6

2×55

16

17.6-44.4

916-2656

YBF315S-6

2×75

17

21.1-53.3

1035-2999

YBF315M-6

2×90

18

25.0-63.3

1160-3362

YBF315L2-6

2×132

19

29.4-74.4

1292-3746

YBF355M1-6

2×160

20

34.3-86.8

1432-4150

YBF355L1-6

2×220

21

39.7-100.5

1579-4576

YBF450S2-6

2×280





FBCDZ(B)-8

(n=740r/min)



18

18.9-47.8

661-1917

YBF315S-8

2×55

19

22.2-56.2

737-2136

YBF315M-8

2×75

20

25.9-65.5

816-2367

YBF315L1-8

2×90

21

30.0-75.9

900-2609

YBF355M1-8

2×132

22

34.5-87.2

988-2863

YBF355M2-8

2×160

23

39.4-99.7

1080-3130

YBF355L1-8

2×185

24

44.8-113.2

1176-3408

YBF355L3-8

2×220

25

50.6-128.0

1276-3698

YBF450M1-8

2×280

26

56.9-144.0

1380-3999

YBF560S2-8

2×355



系列

Series


机号

No.


风量(m3/s)

Air volume (m3/s)

全压(Pa)

Full pressure(Pa)

电机型号

Motor model


功率(KW)

Power (KW)


FBCDZ(B)-8

(n=740r/min)

27

63.7-161.0

1488-4313

YBF560S2-8

2×355

28

71.1-179.8

1600-4638

YBF560M2-8

2×450







FBCDZ(B)-10

(n=590r/min)


21

23.9-60.5

572-1659

YBF315L-10

2×75

22

27.5-69.5

628-1820

YBF315L-10

2×75

23

31.4-79.5

686-1990

YBF355M1-10

2×90

24

35.7-90.3

747-2166

YBF355M2-10

2×110

25

40.3-102.1

811-2351

YBF355L2-10

2×160

26

45.4-114.8

877-2542

YBF355L3-10

2×185

27

50.8-128.6

946-2742

YBF450S3-10

2×200

28

56.7-143.4

1017-2949

YBF450M2-10

2×250

29

63.0-159.3

1091-3163

YBF450M2-10

2×250

30

69.7-176.4

1168-3385

JBO710M1-10

2×315

32

84.6-214.0

1329-3851

JBO800S2-10

2×450

34

101.5-256.7

1500-4348

JBO900S1-10

2×560

36

120.4-304.7

1682-4874

JBO900M1-10

2×710








FBCDZ(B)-12

(n=490r/min)




25

33.5-84.8

559-1621

JBO355S2-12

2×110

26

37.7-95.3

605-1754

JBO355S2-12

2×110

27

42.2-106.8

652-1891

JBO400S-12

2×132

28

47.1-119.1

702-2034

JBO400M-12

2×160

29

52.3-132.3

753-2182

JBO400M-12

2×160

30

57.9-146.5

806-2335

JBO710S1-12

2×200

32

70.3-177.7

916-2656

JBO710M1-12

2×250

34

84.3-213.2

1035-2999

JBO800S1-12

2×315

36

100.0-253.1

1160-3362

JBO900S1-12

2×450

38

117.6-297.6

1292-3746

JBO900M1-12

2×560

40

137.2-347.2

1432-4150

JBO900M2-12

2×710

42

158.8-401.9

1579-4576

JBO900L2-12

2×1000

44

182.6-462.1

1733-5022

JBO900L3-12

2×1250
